In this post, I will walk through the steps of configuring load balancer settings for load balancing web servers.

Lab Setup

The below diagram is a pictorial representation of my lab setup.

Let’s jump into the lab and start configuring the load balancer.

I have deployed a couple of web servers running on CentOS 7.

These are plain HTTP servers and a sample page deployed.

Load Balancer Configuration

Create Session Persistence Profile

A persistence profile controls the settings that dictate how long a client will stay connected to one of the servers from a pool of load-balanced servers. Enabling a persistence profile ensures the client will reconnect to the same server every time, or at least for a desired duration of time.

Cookie based persistence is the most commonly used mechanism when dealing with web applications. To learn more about this, please see Avi official documentation on HTTP Cookie Persistence

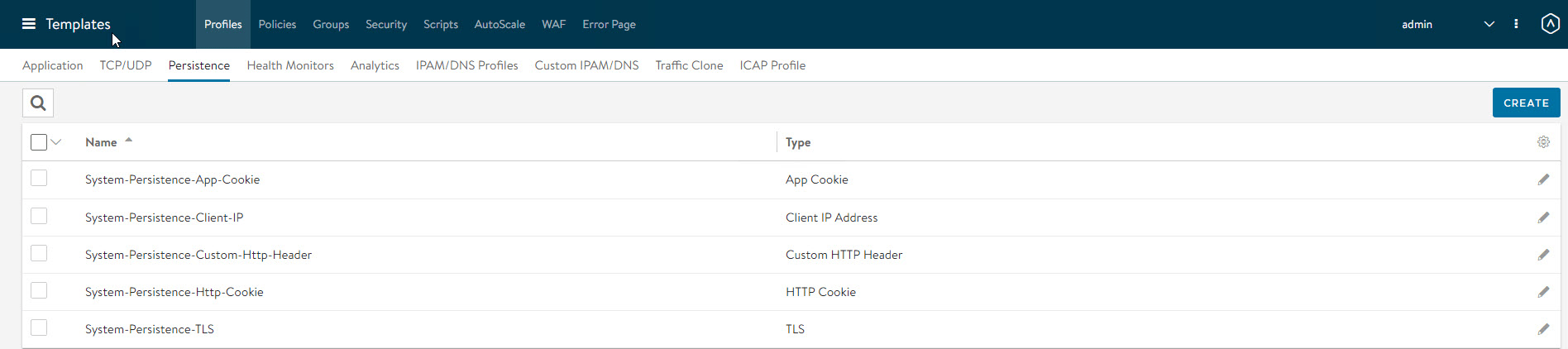

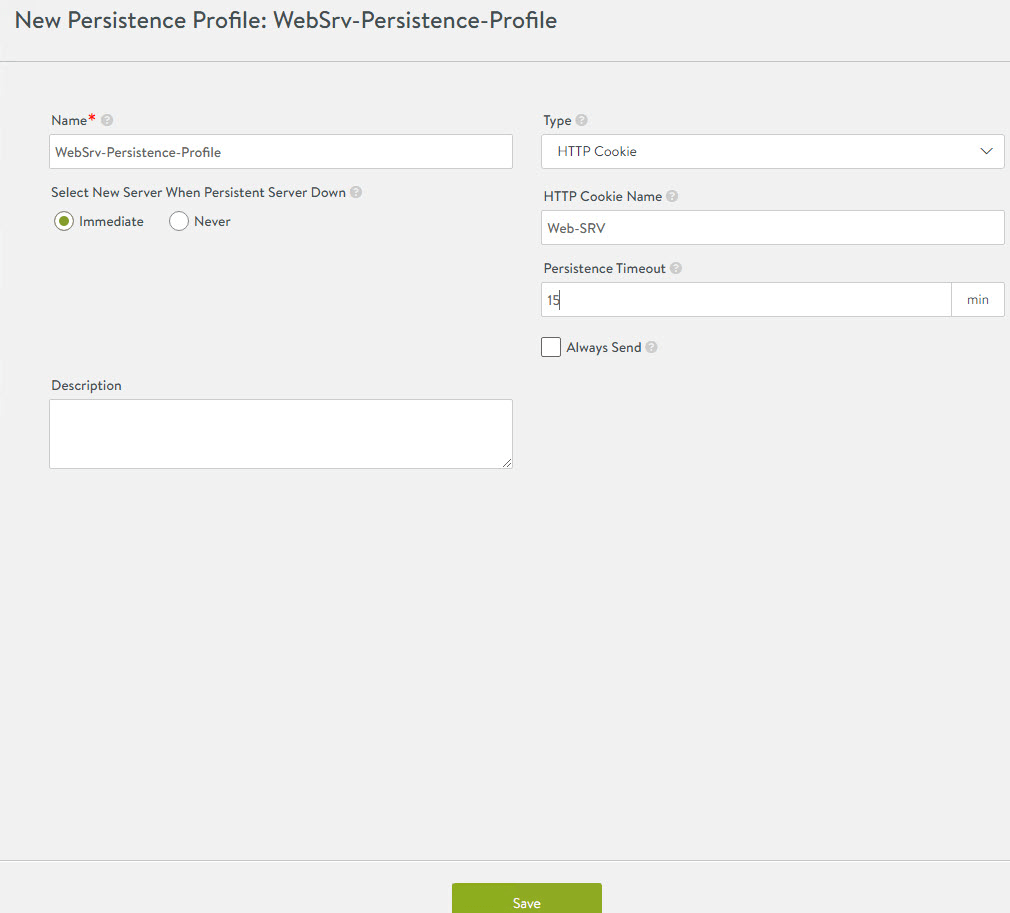

To create a new Persistence profile, navigate to Templates > Profiles > Persistence and click on create button.

Configure the following settings:

• Name: Name for the Persistence Profile.
• Type: HTTP Cookie
• HTTP Cookie Name: A name that makes sense to you.
• Persistence Timeout: Anything between 15-30 minutes is good.

Create Health Monitor

Health monitors are used by load balancers to check if the back-end servers in the server pool are healthy or not. If a back-end server has gone bad, the load balancer doesn’t forward any traffic to that server and ensures that client computers always get connected to healthy servers.

Avi Health Monitors are explained in greater detail Here

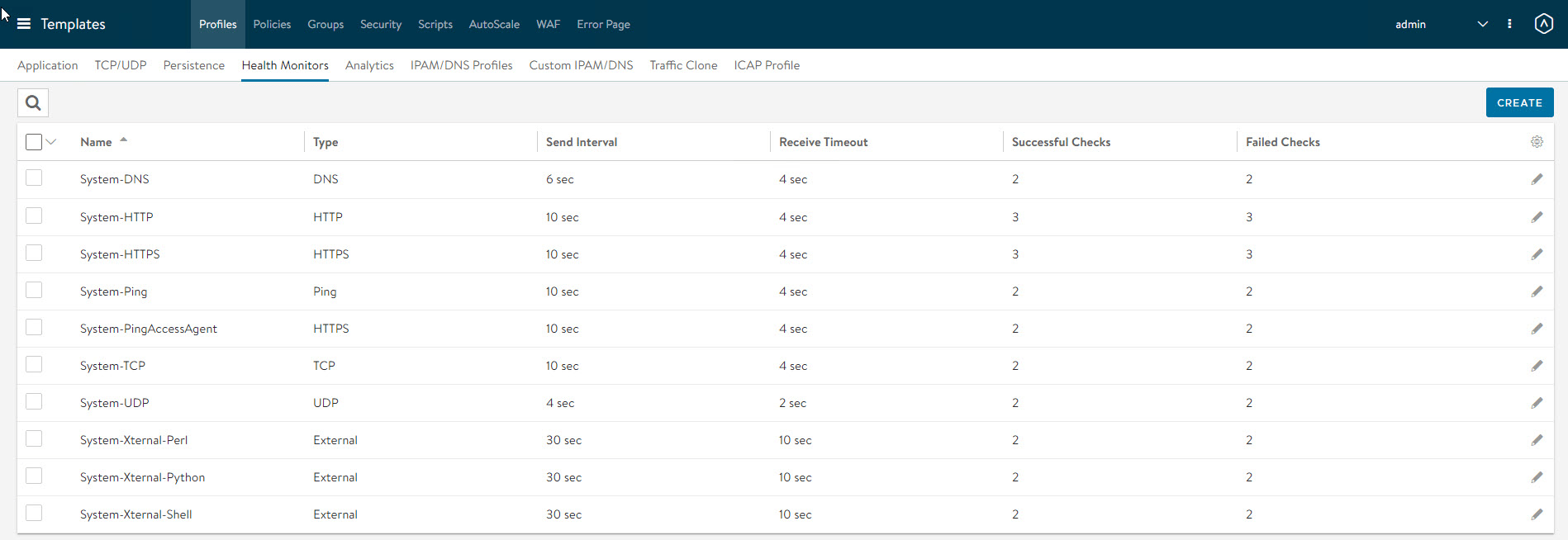

To create a new health monitor profile, navigate to Templates > Profiles > Health Monitors and click on create button.

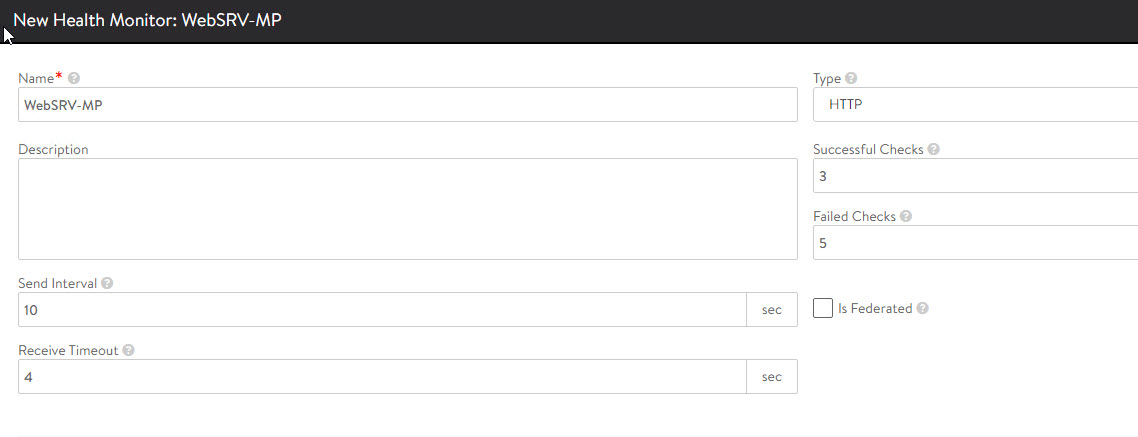

Configure following:

• Name: Name for the profile.
• Type: HTTP
• Monitor port to 80

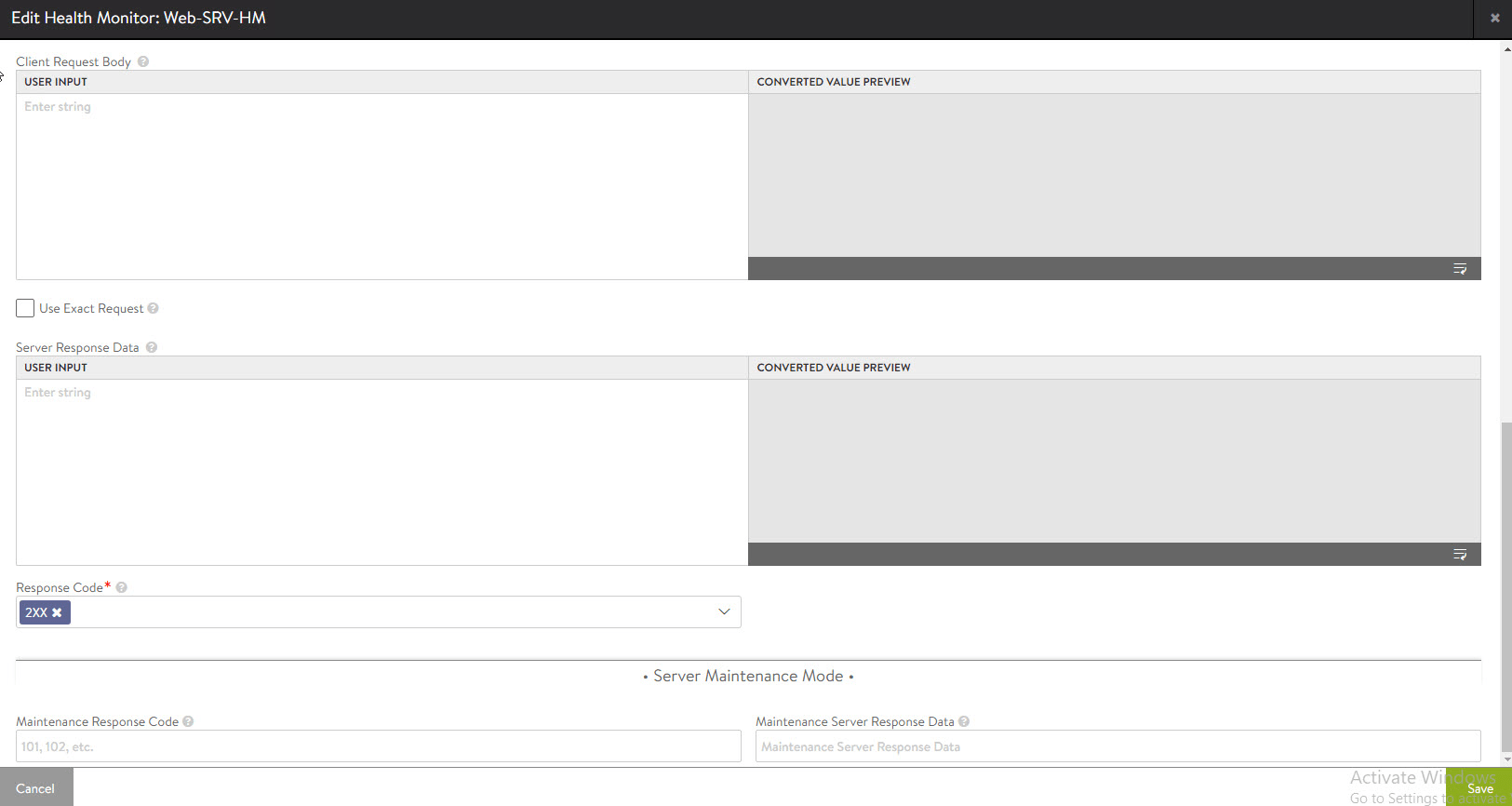

• Response Code: 2XX

Other settings you can leave to default.

Create Server Pool

A Server Pool has a list of servers that needs to be load balanced. To learn more about Server Pools, click here.

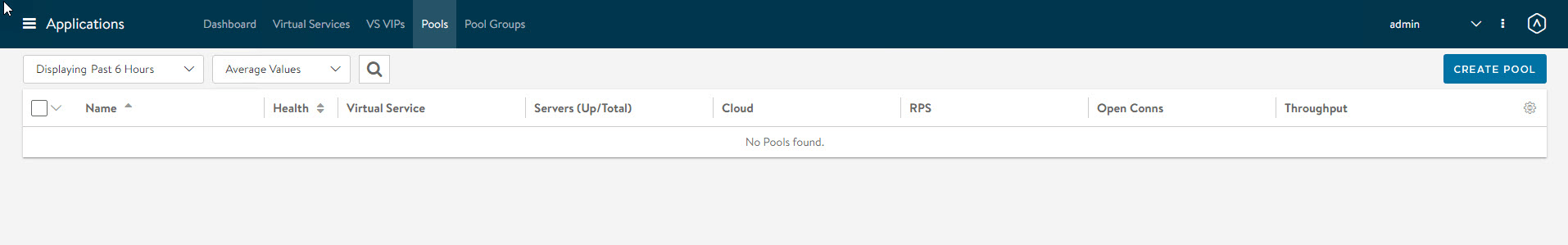

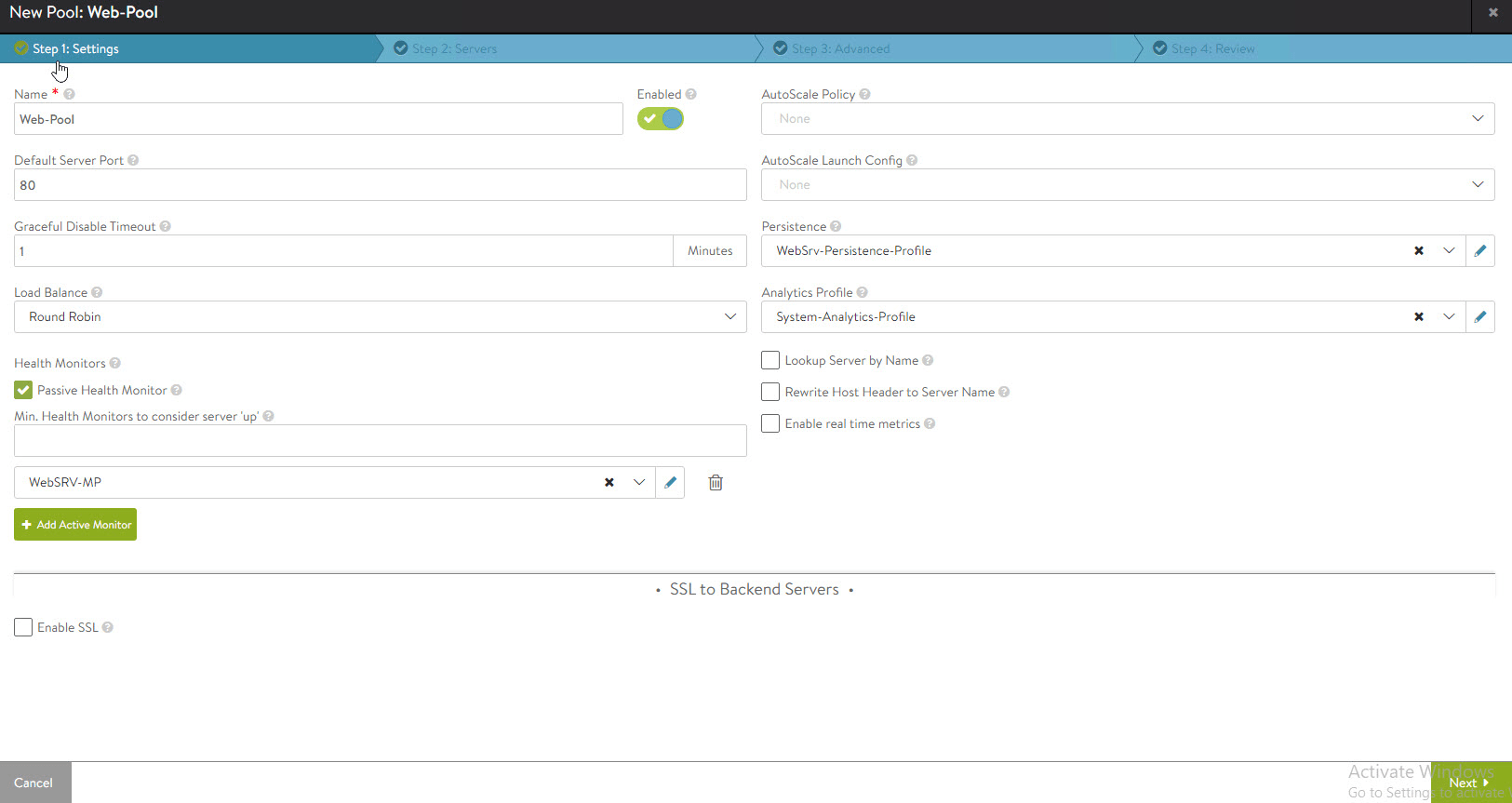

To create a new server pool, navigate to Applications > Pools and click on Create button.

Configure following:

• Name: Name for the server pool.
• Persistence: Select the persistence profile that you created in Step-1.
• Add Active Monitor and add the health monitor that you created in Step-2.

Hit Next to navigate to the next page.



On the Servers page, add the servers that will be part of this pool. Punch in port number if any custom port/service port is being used.

Create Virtual Service

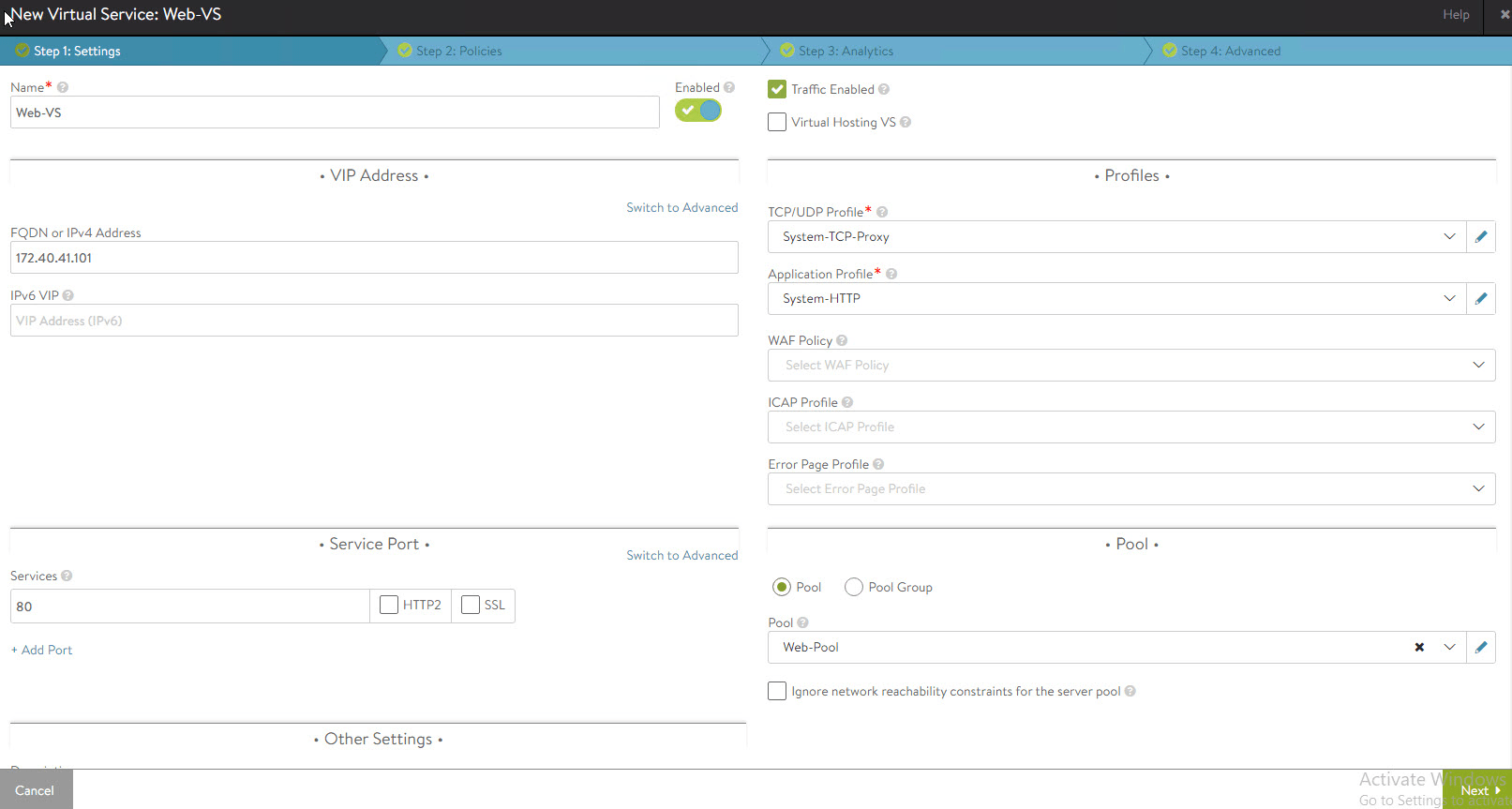

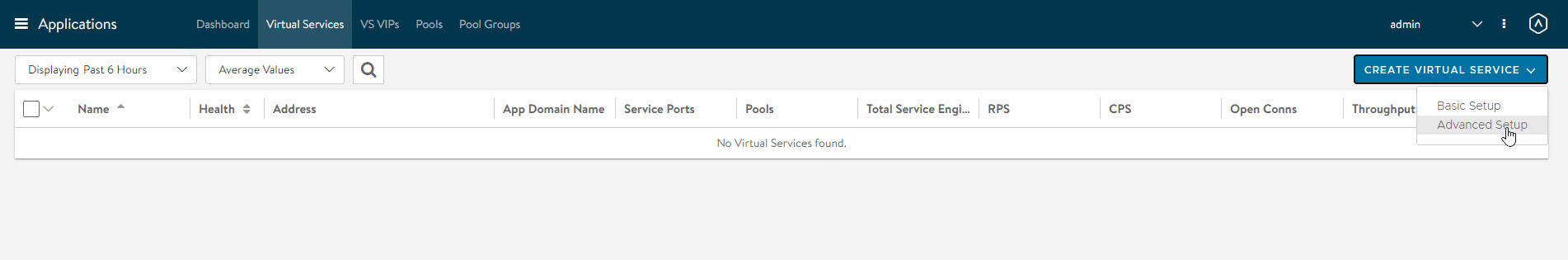

Navigate to Applications > Virtual Services > Create Virtual Service > Advanced Setup.

Configure the following:

• Name: Name for the Virtual Service.
• Application profile: System-HTTP
• FQDN: IP Address of the VIP for the virtual server.
• Service: Port 80.
• Pool: Select the server pool that you have created in the previous step.

Note: If your web server uses SSL, checkmark the SSL box and configure the SSL certificate and SSL profile, etc.

Hit Next to go to the next page.

You can leave the default settings on the Policies and Analytics page and directly go to the Advanced page and configure the following settings:

• Auto Gateway: Selected
• Use VIP as SNAT: Selected
• SE Group: Default-Group

Hit Save to continue.

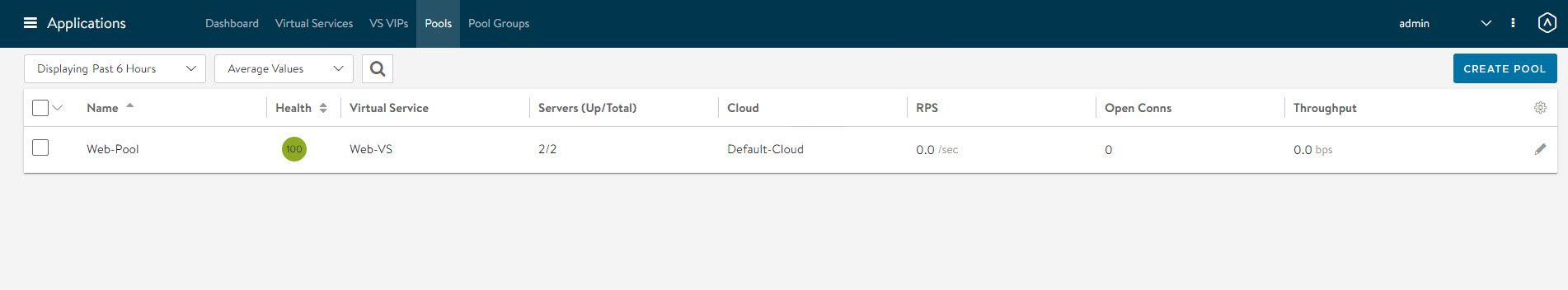

Go back to pools and ensure that the pool health score is showing 100. It takes a bit of time to build the health score.

The same is true for Virtual Service status as well.

We are done with the configuration now. It’s time to test the load balancer.

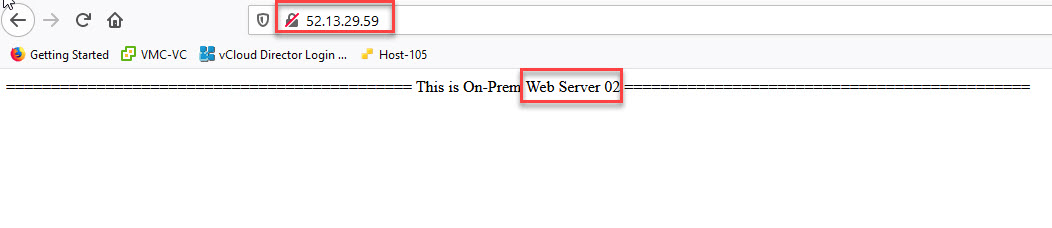

Hit the VIP local IP to ensure you are getting a response from every pool member (2 servers in my case)

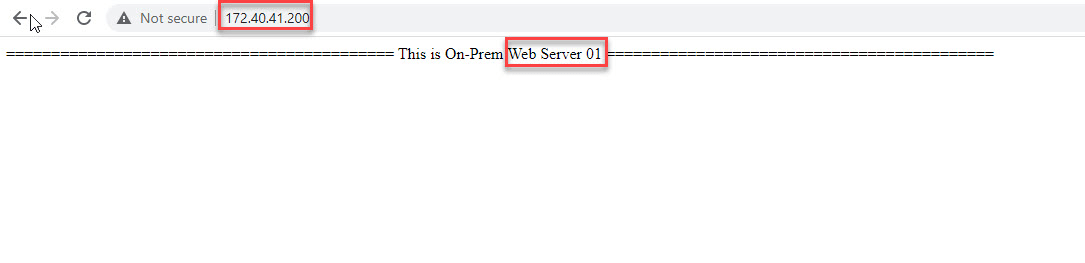

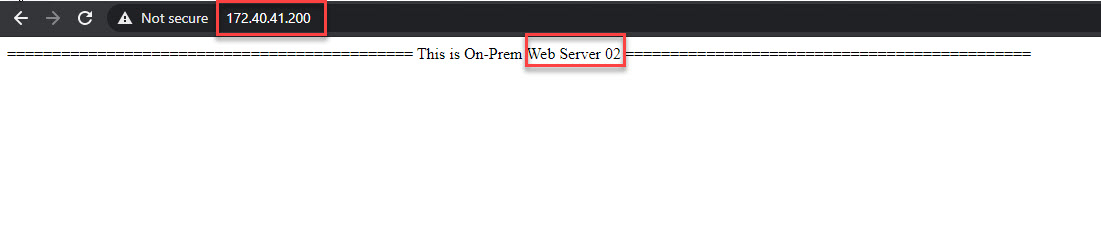

First, I tried accessing the VIP locally and got a response from both servers.

Next, I mapped VIP to a Public IP (via NAT) and accessed the servers over the internet, and verified that both pool members were responding to the request.
